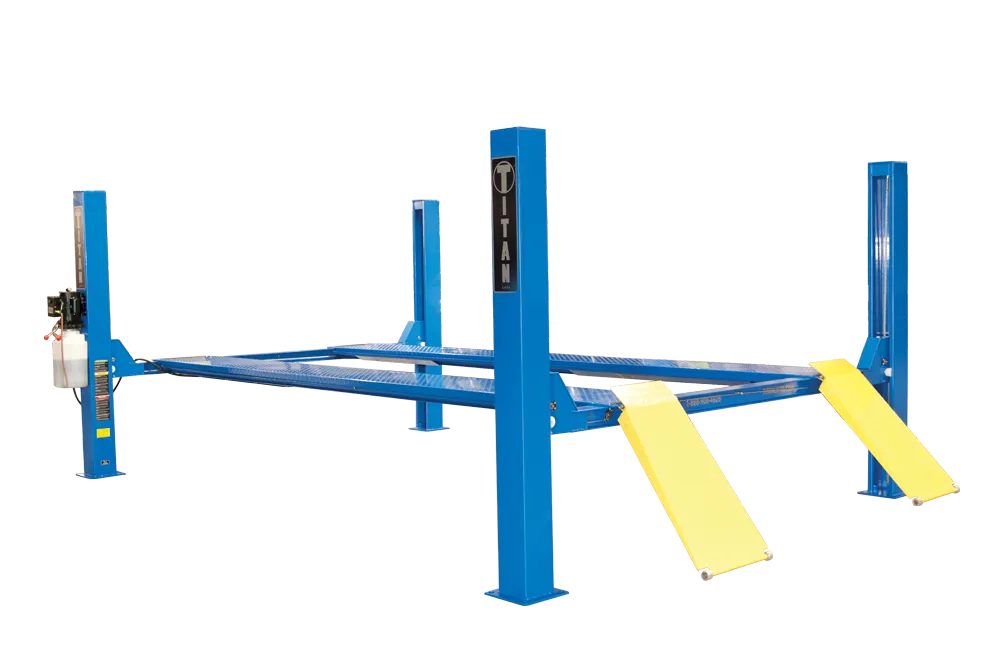

Titan HD4P-12000 4-Post Lift
***Promo Price Good Through 12/31/2024***
To Save on Shipping Cost Call 800-837-3818 For Local Pickup
The HD4P-12000 4-post lift provides 12,000 lb of lifting capacity. There is no power beam; the cylinder is stored under one of the single-piece diamond-plate tracks. The HD4P-12000 utilizes a simple lever release system and safety locks. This commercial grade, cable driven lift gives you the power needed to work on heavy vehicles in a solid 4-post setup.
Specifications:
- Overall Height | 88"
- Overall Width | 137"
- Overall Length | 195.25"
- Lifting Speed | 51 sec
- Max Lifting Height | 67"
- Lowered Runway Height | 6"
- Width Between Columns | 118.5"
- Max Drive-Thru Clearance | 104.5"
- Max Clearance Under Runway | 63"
- Runway Width | 19.25"
- Width Between Runways | 48"
- Runway Length (no ramp) | 191.25"
- Ramp Length | 38"
- Load Capacity | 12,000 lb
- Net Weight | 2,866 lb
- Concrete Spec. Min. | 6" Reinforced @ 3,000 PSI
- Power Supply | 220V-1PH-60HZ-20AMP
- Warranty | 5 Year Structural / 1 Year Parts
Additional Accessories (Sold Separately):
- Titan RJ-6K-HP 6,000 lb Rolling Bridge Jack
- Titan Power Unit 220V-WO-I Titan Power Unit
Additional HD4P-12000 Materials:
PLEASE NOTE, IMPORTANT INFORMATION:
- This item ships by truck. Additional shipping charges will apply to ship to a Non-Commercial Address. (Liftgate Delivery is not an option on this product. You must provide a way to get it off of the truck.)
